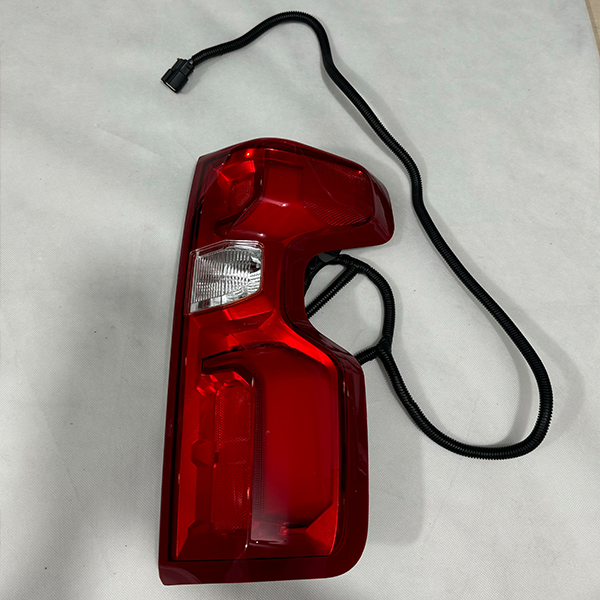

As a direct replacement for factory halogen tail lights, this product combines modern lighting technology with a sleek, vehicle-complementary design—making it an ideal choice for Silverado owners seeking to elevate their truck’s rear-end aesthetics while improving on-road visibility. Whether for daily commuting or off-road adventures, the 19silverado LED JS23-044 delivers reliable illumination, ensuring your vehicle stands out while keeping you and other drivers safe.
Equipped with bright, energy-efficient LED bulbs, the 19silverado LED JS23-044 provides superior light output compared to traditional halogen lights. It features dedicated functions for brake lights (high-intensity red LEDs), turn signals (standard blinking mode), and parking lights (four integrated LED tubes), ensuring maximum visibility in all weather conditions—rain, fog, or low-light environments.
The product’s polycarbonate (PC) lens offers exceptional impact resistance and clarity, while the polypropylene (PP) housing is built to withstand extreme temperatures (-40°C to +80°C) and harsh environmental elements. A protective coating on the lens and housing further enhances scratch resistance and UV protection, preventing fading or yellowing over time.

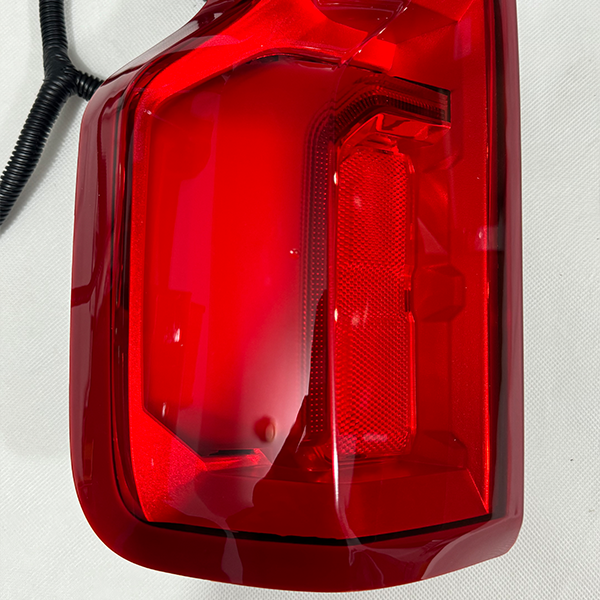

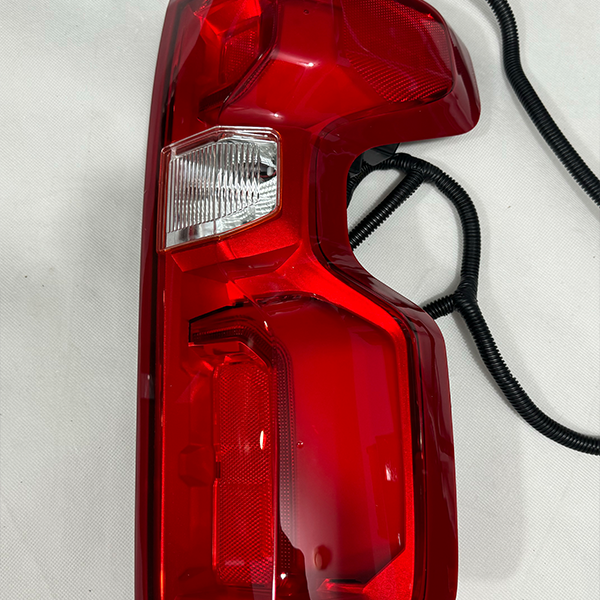

Featuring a glossy red housing paired with a smoke lens, the 19silverado LED JS23-044 complements the 2019 Silverado’s rugged yet modern styling. The design is tailored to match the truck’s original contours, ensuring a seamless, factory-like look without compromising on uniqueness.
Specification Category | Details |
Product SKU | JS23-044 |
Product Type | LED Tail Lights |
Compatibility Model | Chevrolet Silverado 2019 (compatible with 2019-2023 Silverado 1500) |
Lens Material | Polycarbonate (PC) |
Housing Material | Polypropylene (PP) |
Light Source | High-Power LEDs |
Light Functions | Brake Lights, Turn Signals, Parking Lights, Reverse Lights (works with stock halogen reverse lights) |
Color Temperature | 6000K (cool white for reverse lights; red for brake/parking lights) |
Lumens Output | 4500 Lumens (total for pair) |
Waterproof Rating | IP65 |
Operating Voltage | 12-24V DC |
Power Consumption | 45 Watts |
Product Weight | 1.2kg (per pair) |
Warranty Period | 1 Year |
The 19silverado LED JS23-044 is fully compatible with the 2019 Chevrolet Silverado 1500 and offers cross-compatibility with 2020-2023 Chevrolet Silverado 1500 models (factory LED tail light-equipped variants). It is not compatible with Silverado 2500/3500 heavy-duty models or trucks with non-LED factory tail light setups. For optimal fit, confirm your vehicle’s year, make, and model before purchase.
Basic hand tools (socket wrench set, flathead screwdriver)
Microfiber cloth (to protect the lens during installation)
Park your Chevrolet Silverado on a flat, level surface and turn off the engine. Disconnect the negative battery terminal to avoid electrical shorts.
Locate the factory tail light assembly: remove the access panel inside the truck’s rear cargo area to access the mounting bolts.
Use a socket wrench to remove the bolts securing the factory assembly, then gently pull the assembly away from the vehicle to disconnect the wiring harness.

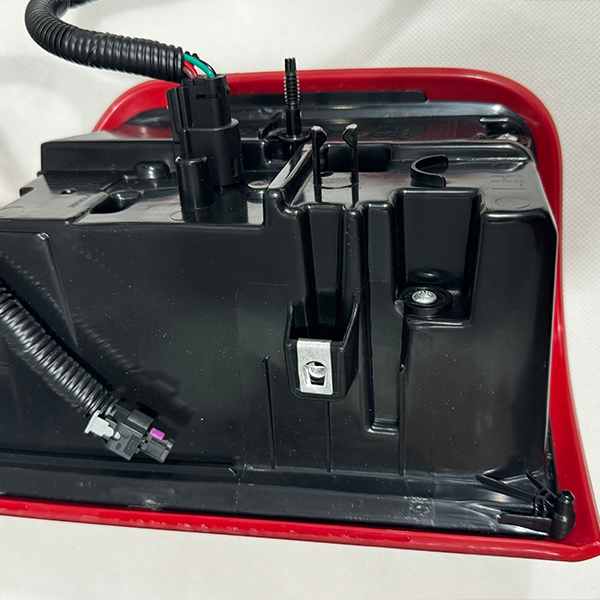

Disconnect the factory wiring harness from the halogen tail light, then connect it to the 19silverado LED JS23-044 (plug-and-play design—no cutting or wire splicing required).
Align the new LED tail light assembly with the vehicle’s mounting points, secure it with the original bolts, and reattach the access panel.
Reconnect the negative battery terminal, test all light functions (brake, turn signal, parking, reverse), and adjust the assembly if needed for a perfect fit.
Approximately 45 minutes for a single person; no professional installation required.
1-Year Manufacturer Warranty: Covers defects in materials and workmanship, ensuring replacement or repair if issues arise within the warranty period.
Rigorous Testing: All 19silverado LED JS23-044 units undergo temperature cycle testing (-40°C to +80°C), waterproof testing (IP65 certification), and impact resistance testing to meet industry standards.
Compliance: Meets DOT (Department of Transportation) and SAE (Society of Automotive Engineers) regulations for on-road use, ensuring legal compliance across North America.
