Moisture intrusion remains the leading cause of premature failure in automotive lighting systems. You might spend hours installing premium illumination, only to watch those upgrades fail within months due to internal condensation. The core problem lies in how manufacturers specify environmental protection. Vague terms like "weatherproof" often mask inadequate sealing. This leaves oxidized circuitry, blown fuses, and compromised nighttime visibility in your LED Car Lights. Evaluating exact Ingress Protection (IP) ratings, testing hydrostatic pressure thresholds, and understanding the mechanics of breathability are mandatory steps. You must look past marketing claims to select truly durable lighting components. We see this constantly in the shop: a customer brings in a vehicle with a dead headlight, and the housing is full of water. Knowing how to read and verify waterproof ratings prevents this exact scenario.
IP Ratings Are Absolute, Not Subjective: The first digit measures dust resistance; the second measures liquid resistance. A rating of IP67 or IP68 is the baseline for exterior car lights exposed to direct submersion or high-pressure washing, while lower ratings like IP44 are restricted to shielded interior areas.
Moisture is Lethal to LEDs: Even microscopic moisture ingress in environments with 70-90% humidity can trigger rapid galvanic corrosion on LED drivers and fine-pitch circuitry within hours.
Hydrostatic Pressure Limits: Sealing longevity is determined by the hydrostatic pressure the gaskets can withstand. High-pressure car washes and deep water crossings exceed the thresholds of low-tier seals.
Sealing vs. Breathability: Complete airtight sealing is often a design flaw. High-quality LED car lights utilize specialized ventilation (like hydrophobic Gore membranes) to manage internal condensation caused by thermal cycling.
Surface Sheeting vs. Runoff: External hydrophobic lens coatings prevent water from pooling or sheeting on the outer lens, preventing thermal shock and beam distortion.
Installation Dictates Performance: A high waterproof rating is easily voided by improper wiring practices, compromised gaskets, or failing to seal rear lamp harness entry points during installation.
A truly durable lighting assembly must meet strict operational criteria. Success means zero internal condensation after rapid thermal cycling. It requires zero lumen degradation over 10,000 hours of continuous use. You need a housing that physically blocks water while managing internal air pressure. If a light fails these basic metrics, its structural integrity is already compromised. We test this by running the lights at full power for an hour, then immediately spraying the housing with ice water. If fog appears on the inside of the lens and doesn't clear within twenty minutes, the ventilation and sealing system has failed.
Durability also extends to the materials used in the construction of the housing. Polycarbonate lenses must be paired with UV-resistant hard coatings to prevent micro-cracking, which can eventually allow moisture to seep in. The adhesives binding the lens to the rear housing, typically butyl rubber or specialized silicone, must maintain their elasticity across extreme temperature ranges. When these materials harden and crack in cold weather, the waterproof rating drops to zero.
Moisture and fine-pitch circuitry create a destructive chemical reaction. When humidity enters a housing, it settles on exposed solder joints and electrical connectors. This triggers rapid galvanic corrosion. LED drivers are particularly vulnerable to this oxidation. The thermal dynamics of automotive lighting accelerate this process. Bulbs generate significant heat during operation. When you drive through a cold puddle, the rapid cooling creates a vacuum effect inside the housing. This vacuum forcefully pulls ambient moisture past weak seals, trapping water directly against sensitive electronics.
Once inside, the water acts as a conductor where none should exist. It bridges the microscopic gaps between surface-mounted components on the printed circuit board (PCB). This causes short circuits that can instantly kill the LED chips or the driver module. Even if a hard short doesn't occur, the continuous presence of moisture causes the copper traces on the PCB to oxidize, turning green and brittle. Eventually, the resistance in these traces becomes so high that the light flickers and dies.
Heat generation expands the air inside the sealed housing.
Rapid cooling from rain or puddles causes the internal air to contract.
A vacuum forms, pulling outside air and moisture through microscopic gaps in the gasket.
Moisture condenses on the coolest surface, usually the inside of the front lens.
Water drips down onto the unsealed PCB and driver components.
Galvanic corrosion destroys the solder joints and copper traces.
Automotive seals face more than just static water. Hydrostatic head pressure dictates how much kinetic force a gasket can withstand before failing. Driving at highway speeds through heavy rain exponentially increases the pressure exerted on your front lighting assemblies. Standing water creates similar kinetic pressure during deep crossings. Standard atmospheric seals cannot hold back water driven at high velocities. You must evaluate seals based on their dynamic pressure limits, not just their static resting state.
Consider the difference between dropping a flashlight in a bucket and spraying it with a pressure washer. The bucket represents static pressure; the water exerts a constant, low-level force based on depth. The pressure washer represents dynamic pressure, where the velocity of the water acts like a physical wedge, driving moisture under rubber lips and through adhesive seams. Automotive lighting must survive dynamic pressure. A seal that passes a simple dunk test in a factory might fail completely when hit by a 70 mph rainstorm on the highway.
Marketing terminology often misleads consumers. Words like "water-resistant" or "weatherproof" hold no technical weight. They are subjective terms designed to sell products without guaranteeing performance. Standardized, verifiable testing metrics are the only reliable indicators of durability. You must demand precise engineering specifications rather than relying on vague promotional language.
When a manufacturer claims a product is "weatherproof," they are usually avoiding the cost of official IP certification testing. In the shop, we treat any light without a specific IP rating as an unsealed unit. We have pulled apart countless "weatherproof" light bars only to find standard foam gaskets instead of molded silicone, and zero potting compound on the wire entry points. These units are guaranteed to fail after the first heavy rain or winter freeze.
The IEC standard 60529 defines the Ingress Protection (IP) scale. It provides a strict technical breakdown of environmental resistance. The first digit indicates protection against solid particles, like dust and dirt. A '6' represents complete dust-tight performance. The second digit measures liquid intrusion resistance. Higher numbers indicate a greater capacity to withstand water pressure and volume.
Understanding this scale is non-negotiable for anyone wiring a vehicle. The testing parameters are rigid. For example, the dust test for a '6' rating involves placing the unit in a vacuum chamber and circulating talcum powder for up to eight hours. If any powder breaches the housing, it fails. The liquid tests are equally brutal, ranging from dripping water to high-pressure steam jets.
IP Rating | Solid Protection | Liquid Protection Level | Automotive Application |
|---|---|---|---|
IP44 | Objects > 1mm | Splashing water from any direction | Interior cabin lighting only |
IP65 | Dust-tight | Low-pressure water jets | Light rain exposure, protected areas |
IP67 | Dust-tight | Temporary submersion (1m for 30 mins) | Standard exterior headlights and tail lamps |
IP68 | Dust-tight | Continuous submersion under pressure | Off-road and extreme weather lighting |
IP69K | Dust-tight | High-pressure, high-temp washdown | Heavy-duty commercial and agricultural use |
IP44 offers basic splash protection. It is highly vulnerable to road spray and pressurized water. You should strictly limit IP44 components to interior cabin lighting or deeply shielded engine bay compartments. IP65 provides defense against low-pressure jets. It handles light rain but fails under high-pressure commercial car washes. Prolonged exposure to tire kick-up will quickly overwhelm an IP65 Rear Lamp.
IP67 represents the mandatory baseline for reliable exterior lighting. The testing standard requires the unit to survive submersion up to one meter for 30 minutes. This ensures the housing can withstand heavy storms and deep puddles. IP68 and IP69K offer extreme durability. They handle continuous submersion and high-temperature washdowns. These ratings are essential for off-road vehicles and specialized trucks that face severe environmental abuse.
The jump from IP67 to IP68 is significant for off-road applications. While IP67 guarantees survival for 30 minutes at one meter, IP68 testing parameters are defined by the manufacturer but must exceed IP67. Usually, this means submersion at three meters for an hour or more. If you are building a rig for deep water crossings, IP67 is a gamble; IP68 is the requirement. IP69K is a different beast entirely, designed to withstand 1450 PSI of water heated to 176 degrees Fahrenheit, sprayed from inches away. We use IP69K lights on heavy equipment and agricultural machinery that gets pressure-washed daily.
A completely airtight seal is conceptually flawed for automotive lighting. Air expands and contracts rapidly due to the thermal cycling of active bulbs. A 100% sealed housing cannot accommodate this physical expansion. Pressure builds up and forces humid air through microscopic gaps in the adhesive. Once trapped, this humid air leads to inevitable internal fogging. Condensation impacts the beam pattern, causes light scattering, and severely degrades overall light output.
We see this constantly with cheap aftermarket housings. The manufacturer uses a massive amount of silicone to seal every possible gap, thinking this makes the light waterproof. Instead, they create a pressure bomb. When the light heats up, the expanding air has nowhere to go. It pushes against the weakest point—usually the seal between the lens and the plastic housing. Over time, this constant pushing and pulling weakens the adhesive. Eventually, the seal breaks, and water pours in during the next rainstorm.
Engineers solve the condensation paradox using micro-porous membranes. Components like Gore-Tex patches and specialized breather valves manage internal pressure. These membranes allow air molecules and water vapor to escape the housing freely. Simultaneously, they block liquid water droplets from entering. This maintains the high IP rating while actively preventing lens fogging and pressure blowouts.
These breather patches are usually located on the back of the housing, protected from direct water spray. They utilize expanded polytetrafluoroethylene (ePTFE). The pores in this material are thousands of times smaller than a water droplet, but hundreds of times larger than a water vapor molecule. This allows the housing to "breathe" out the humid air generated during thermal cycling without letting liquid water in. If you are inspecting a high-end light bar or headlight assembly, you should always look for these small, circular membrane patches.
Design Approach | Pressure Management | Condensation Risk | Long-Term Durability |
|---|---|---|---|
100% Sealed (No Breather) | Poor. Pressure blows out seals. | High. Traps ambient humidity. | Low. Adhesives fail from stress. |
Vented (Open Tube) | Excellent. Zero pressure buildup. | Extreme. Allows liquid water in. | Very Low. Floods easily. |
ePTFE Membrane (Gore Patch) | Excellent. Equalizes pressure. | Low. Vents vapor, blocks liquid. | High. Protects seals and electronics. |
Water sheeting on the outer lens acts as an insulating layer. It traps heat inside the housing and distorts the projected light output. Hydrophobic surface treatments act like a durable water repellent for automotive optics. They prevent water-logging on the lens surface. This ensures rapid runoff, maintains thermal stability, and preserves consistent beam geometry even in torrential rain or wet snow.
Beyond thermal management, hydrophobic coatings keep the lens clean. When dirty water dries on a standard polycarbonate lens, it leaves behind a film of road grime and minerals. This film scatters the light beam, reducing your visibility and blinding oncoming drivers. A hydrophobic coating forces the water to bead up and roll off, carrying the dirt with it. This self-cleaning effect is critical for maintaining peak lumen output during long drives in bad weather.

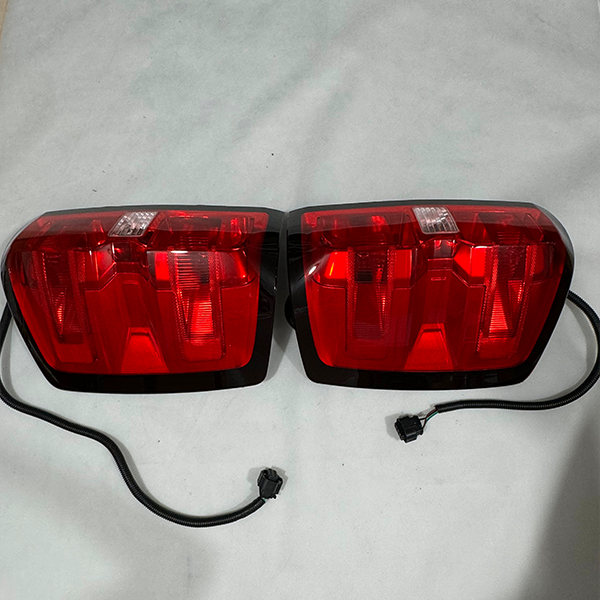

Daily drivers face unique environmental stresses. Commercial car washes use high-pressure jets and harsh chemical detergents. These forces degrade standard OEM and aftermarket seals over time. A rear lamp assembly sits directly in the path of constant road spray and salt mist from rear tires. This constant bombardment requires robust gaskets and highly chemical-resistant potting compounds to prevent long-term moisture ingress.
In salt-belt states, the problem is magnified. Road salt mixed with melting snow creates a highly corrosive brine. When this brine gets kicked up into the wheel wells and behind the bumper, it coats the wiring harnesses and the back of the light housings. If the wire entry points are not sealed with marine-grade potting compound, the saltwater will wick up the wires, past the insulation, and directly onto the circuit board. We frequently replace entire wiring harnesses because capillary action pulled saltwater two feet up the wire from a poorly sealed connector.
Avoid aiming high-pressure wash wands directly at the seams of light housings.
Inspect the rear of the housings annually for signs of salt buildup or corrosion.
Apply dielectric grease to all external connectors to block moisture and salt.
Ensure rubber dust boots behind headlight bulbs are seated perfectly flush.
Off-road environments demand uncompromising structural integrity. Vehicles frequently encounter river crossings, heavy mud, and dense snow. Off-road Car Lights require a minimum IP68 rating to survive. Physical impacts from rocks and branches create micro-fractures in rigid seals. The housing must withstand these impacts and the subsequent high-pressure water exposure without allowing a single drop of moisture inside.
Mud presents a specific challenge. When thick mud bakes onto a light housing, it acts as an insulator, causing the internal temperature to spike. This extreme heat can warp the plastic housing or degrade the silicone seals. When you finally wash the mud off with a pressure washer, the sudden temperature drop and high-pressure water jet will instantly exploit any weakness in the warped seals. Off-road lights must be built with heavy cast aluminum heat sinks and thick, pliable EPDM rubber gaskets to survive this cycle of abuse.
You must verify manufacturer claims before purchasing. Look for independent testing lab certifications from organizations like UL or Intertek. Check the warranty terms specifically covering moisture damage. Be highly skeptical of suspiciously cheap units claiming IP68 ratings. If a light lacks visible breather valves, robust potting compounds around the wiring ingress, or high-quality silicone gaskets, the IP claim is likely fabricated.
A quick visual inspection can tell you a lot about the build quality. Look at where the power wires enter the housing. On a high-quality unit, this entry point will be filled with a hard, black epoxy resin (potting compound) that locks the wires in place and completely seals the hole. On a cheap unit, you might just see a loose rubber grommet or a dab of clear silicone. That silicone will peel away after a few months of vibration, leaving a gaping hole for water to enter.
A high waterproof rating is easily voided by poor installation. Splicing wires too close to the light housing allows water to wick directly into the circuitry. Failing to use dielectric grease on connectors invites rapid corrosion. Pinching rubber gaskets during a bulb replacement destroys the seal entirely. You must route proper drip loops in your wiring harnesses to divert water away from entry points. Always utilize marine-grade, adhesive-lined heat shrink tubing for all electrical connections.
Drip loops are a basic but critical installation technique. If you run a wire straight down into the top of a light housing, gravity will pull water down the wire and directly into the seal. By routing the wire down past the light, and then looping it back up to the entry point, you force the water to drip off the bottom of the loop instead of running into the housing. It takes five extra seconds during installation but saves hundreds of dollars in ruined equipment.
Never splice wires within six inches of the housing entry point.
Use adhesive-lined heat shrink on all crimped or soldered connections.
Route wires with a downward drip loop before entering the housing.
Pack all multi-pin connectors with dielectric grease before mating them.
Verify that all rubber dust caps and breather patches are intact before mounting.
Audit your current lighting environment to determine if you need standard IP67 protection or heavy-duty IP68 ratings based on your driving habits.
Check the specific IP certifications of your shortlisted products on the manufacturer's technical specification sheets, ignoring vague marketing terms.
Inspect all wiring harnesses and connectors for proper drip loops, secure potting compounds, and adequate dielectric grease application.
Replace any housings that show signs of internal condensation immediately to prevent electrical shorts and further damage to the vehicle's electrical system.
A: IP67 is the baseline standard for exterior automotive use. It protects against temporary submersion and heavy rain. IP44 is highly vulnerable to road spray and should only be used for protected interior cabins.
A: Thermal cycling causes air to expand and contract. If breather valves are missing or clogged, ambient humidity gets trapped inside. This moisture condenses on the cool lens when the light turns off.
A: No. IP65 may fail under high-pressure commercial car washes or heavy road spray kicked up by tires. IP67 is the safer standard for rear assemblies exposed to constant environmental abuse.
A: High-speed driving through rain or using pressure washers creates kinetic force. This forces water past weak seals that are only rated for static submersion, leading to rapid internal flooding.
A: A hydrophobic coating prevents water from sheeting or pooling on the lens surface. This maintains optical clarity, ensures rapid water runoff, and prevents thermal shock to the housing.
