The automotive lighting industry heavily promotes raw lumen output as the ultimate measure of visibility. This metric is fundamentally flawed. A 20,000-lumen bulb is functionally useless and actively dangerous if the optical geometry fails to direct that light exactly where the driver needs it. Vehicle owners frequently upgrade their lighting systems to improve nighttime visibility. Unfortunately, they often experience severe foreground glare, dark spots, and blinding flashes to oncoming traffic. This happens because the new beam pattern is mismatched with the vehicle's native housing. Evaluating lighting upgrades requires shifting your focus away from total brightness. You must prioritize usable light, measured in lux. You also need to look at cutoff sharpness and housing compatibility. Achieving optical precision ensures your illumination is safe, compliant, and highly effective on dark roads. Understanding how beam geometry interacts with your vehicle's hardware is the only way to achieve a genuine performance upgrade.
Usable Light Over Raw Output: Beam pattern determines the concentration of light on the road (lux) rather than the total light emitted from the diode (lumens).
Geometry Dictates Compatibility: Installing aftermarket LED car lights into halogen-designed reflector housings without matching the exact focal length creates scattered beams and dangerous glare.
Compliance and Safety Rely on Cutoff Lines: A sharp, asymmetrical cutoff line prevents blinding oncoming traffic while illuminating road signs, a critical factor in DOT and ECE compliance.
Directional Specificity Matters: Asymmetrical beam patterns are strictly engineered for specific traffic flows; a left-side car light beam profile must match the region's driving orientation (Left-Hand Drive vs. Right-Hand Drive).
Eliminating Dead Zones: A superior beam pattern distributes light uniformly across the road surface, eliminating dangerous blind spots and mid-range blackouts.
Lumens measure omnidirectional light output. This represents the total volume of light a bulb produces in all directions before any housing or lens focuses it. Lux measures light intensity on a specific surface area. In automotive applications, lux tells us how much light actually hits the asphalt directly in front of your vehicle. A poorly focused high-lumen bulb dumps massive amounts of light immediately in front of the bumper. This high foreground illumination causes your pupils to constrict. Consequently, your distance projection suffers terribly, leaving you blind to hazards further down the road.
The contrast principle dictates how we see at night. Beam shape and optical control dictate road texture visibility, contour recognition, and driver depth perception on pitch-black roads. Raw intensity alone washes out these details. The true success metric for any lighting upgrade is maximizing lux in the critical driving zone. This zone typically sits 50 to 75 meters ahead of the vehicle. You must achieve this intensity without light bleed. Upgrading your Car Lights requires focusing entirely on how effectively the housing harnesses and projects the available light. If the light scatters into the trees, the high lumen rating means nothing.
When evaluating performance, technicians look at the lux reading at specific test points on a wall chart. These points correspond to the driver's lane, the oncoming lane, and the right-hand shoulder. A successful beam pattern concentrates the highest lux values just below the horizontal cutoff line. This pushes the light as far down the road as possible without elevating it into the eyes of other drivers. Any light that falls outside these targeted zones is wasted energy and potential glare.

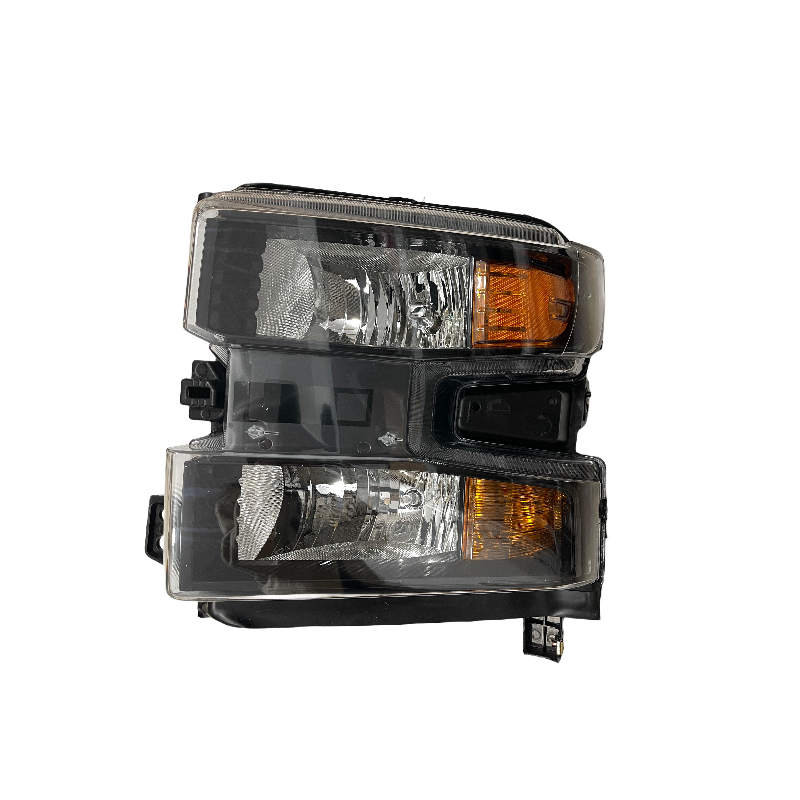

Reflector bowls rely on precise bulb filament placement. The internal chrome bowl features multifaceted angles designed to catch light from a very specific focal point and bounce it forward. The geometry of a parabolic reflector is mathematically calculated based on the exact dimensions of a standard halogen filament. If the light source shifts even a millimeter, the reflected beam scatters wildly. The angles no longer align, and the light bounces in unintended directions, creating glare and dark spots.

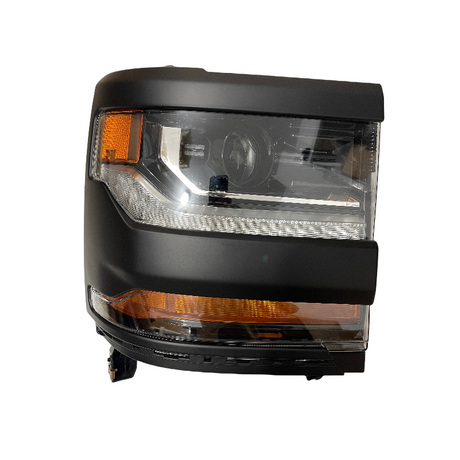

Projector lenses utilize a different mechanical approach. They contain a physical cutoff shield and a thick magnifying glass lens. The bulb sits behind the shield inside an elliptical bowl. The shield blocks light from shining too high, creating a razor-sharp horizontal line. The lens then focuses the remaining light into a highly controlled, intense beam. Beam pattern degradation occurs most frequently when mixing housing types with incompatible light sources. Putting a directional LED into a reflector designed for a 360-degree halogen filament guarantees optical failure.
Understanding the internal mechanics of these housings helps explain why drop-in replacements often fail. A projector's shield physically stops light, meaning it can handle slightly misaligned bulbs better than a reflector. However, a misaligned bulb in a projector will still result in a weak hotspot or a hotspot that sits too low, reducing your visible distance. Reflectors are far more sensitive. They require absolute precision in the light source's focal length to function correctly.
Housing Type | Internal Mechanism | Light Source Requirement | Common Upgrade Issues |
|---|---|---|---|
Parabolic Reflector | Multifaceted chrome bowl bounces light forward based on precise angles. | Requires exact 360-degree focal point (like a halogen filament). | Severe light scatter and glare if diode placement is inaccurate. |
Elliptical Projector | Internal shield and magnifying lens focus the beam into a sharp pattern. | Requires high-intensity directional or omnidirectional light. | Hotspot misalignment and reduced distance throw if poorly matched. |
Free-Form Reflector | Complex segmented bowl directs light without a front lens pattern. | Requires strict adherence to original filament geometry. | Creates massive dark voids in the center beam if the light source is too thick. |
A standard low-beam pattern is not perfectly flat. It features a distinct "step-up" in the cutoff line. This asymmetrical design serves a critical safety function. The lower side of the cutoff keeps the intense light below the eye level of oncoming drivers. The higher side raises the beam on the shoulder side of the road. This elevated section illuminates pedestrians, parked cars, and reflective road signs. Without this step-up, drivers would have severely limited visibility on the periphery of their lane.
This design integrates strict region-specific optics. A Left-Side Car Light assembly in a Right-Hand Drive (RHD) country requires a completely different step-up orientation than one in a Left-Hand Drive (LHD) country. If you install an LHD housing in an RHD region, the step-up will shine directly into oncoming traffic. This blinds other drivers while leaving your road shoulder completely dark. You must verify the regional specification of any housing before installation.
The exact angle and height of this step-up are heavily regulated. In DOT specifications, the step is often a gradual slope, while ECE regulations mandate a sharp, distinct angle. When evaluating a beam pattern against a wall, this step should be clearly defined. A blurry or non-existent step indicates poor optical control, meaning the light is bleeding into areas where it shouldn't be.
The "hotspot" is the most intense, concentrated area of the beam pattern. For maximum distance throw, this hotspot must sit directly below the cutoff line in the center of the driving lane. If the hotspot drops too low, you lose distance visibility. The light hits the ground too soon. If it shifts laterally, you lose central focus, making it difficult to track the road ahead at highway speeds.
Eliminating mid-range dead spots is equally important. Localized dark voids within the beam pattern disrupt driver reaction times. Your eyes naturally track away from dark zones, breaking your focus on the road ahead. These dead spots often occur when the light source is too thick, casting a shadow within the reflector bowl. A high-quality beam pattern provides a smooth, continuous gradient of light from the foreground to the cutoff line.
Lateral beam spread ensures peripheral visibility. A wide-angle lateral light distribution illuminates road shoulders, curbs, and oncoming hazards without reducing the penetrating power of the central hotspot. You need width to see animals or debris entering the roadway. However, this width must be controlled. If the lateral spread is too intense, it can cause foreground glare, reducing your ability to see into the distance.
Regulatory bodies like the DOT and ECE maintain strict compliance criteria regarding light scatter. They measure the amount of light that escapes above the cutoff axis. Excessive upward light scatter blinds oncoming traffic and creates dangerous back-glare in fog or snow. Compliance testing involves placing light meters at specific angles above the horizontal axis to ensure the lux readings remain below a mandated threshold.
Identifying non-compliant beam patterns is straightforward during a wall test. Look for excessive "squirrel finders"—small, concentrated patches of light bleeding above the horizontal axis. While some minor upward bleed is engineered to illuminate overhead signs, aggressive light scatter indicates a failed optical geometry. This violates safety regulations and makes the vehicle dangerous to operate around others.
When upgrading bulbs, you must ensure the new light source does not introduce new glare points. Even if the main cutoff line looks sharp, stray reflections inside the housing can bounce light upward. This is common with poorly designed LED bulbs that have shiny, reflective surfaces on their circuit boards. A matte finish on the bulb body helps absorb stray light and maintain compliance.
Installing aftermarket LED Car Lights into legacy halogen housings carries significant implementation risk. A standard halogen filament emits light in a continuous 360-degree sphere. The reflector bowl is mathematically engineered to capture that specific spherical light output. Every angle of the bowl relies on light hitting it from that exact central point.
Early or cheaply manufactured LED chips emit light directionally, typically from two flat sides of a circuit board. This fundamental mismatch in light emission angles destroys the engineered beam pattern. The reflector bowl cannot properly capture and focus the directional light. The result is a fractured beam pattern characterized by massive dark voids in the center of the road and aggressive, uncontrolled glare shooting into the trees and oncoming lanes.
This scattered light problem is the primary reason many drivers complain about being blinded by oncoming vehicles with aftermarket LEDs. The light is no longer controlled by the housing's optics. It simply floods out of the lens in random directions. To fix this, the LED must replicate the spherical emission of a halogen bulb as closely as possible.
High-quality LED upgrades follow strict evaluation criteria to solve this problem. The LED chipset must mimic the exact size, thickness, and placement of a standard halogen filament. This is known as 1:1 focal length matching. If the halogen filament is 4mm long and sits 25mm from the base, the LED chips must match those exact dimensions.
The thickness of the central board holding the diodes is critical. Manufacturers must use a highly engineered, ultra-thin copper substrate or thermal board. A thicker board pushes the diodes outward, moving them away from the housing's exact focal point. Even a one-millimeter deviation ruins the beam width, destroys the distance depth, and completely misaligns the hotspot. The thinner the board, the closer the diodes are to the true center, resulting in a better beam pattern.
Furthermore, the physical shape of the LED chips matters. Some manufacturers use large, square COB (Chip-on-Board) LEDs to achieve high lumen ratings. These large chips are terrible for beam patterns because they are much larger than a halogen filament. The light source is too broad, causing the reflector to lose focus. Smaller, rectangular CSP (Chip Scale Package) LEDs are much better at replicating the narrow profile of a tungsten filament.
Because aftermarket LED bulbs must thread into existing housings, the final resting angle of the diodes can vary. The locking tabs on different vehicle housings are not always oriented the same way. Adjustable collars are an absolute necessity for aftermarket LED bulbs. They allow the installer to rotate the bulb independently of the locking collar.
To restore the correct beam pattern, the diodes must sit perfectly horizontal, facing the 3 o'clock and 9 o'clock positions within the housing. If the bulb locks in at a diagonal angle, the beam pattern will skew heavily, creating a slanted cutoff line and severe glare. 360-degree adjustability ensures you can calibrate the light source to the reflector's geometry, regardless of how the housing is keyed.
During installation, you must visually inspect the bulb through the front of the lens. Ensure the diodes are facing perfectly side-to-side. If they are facing up and down (12 and 6 o'clock), the light will hit the top and bottom of the reflector bowl, completely destroying the low beam pattern and throwing light directly into the sky.
Vehicle owners face a choice between full OEM housing replacements and aftermarket bulb retrofits. Full assemblies offer guaranteed beam patterns and high reliability. The optics are sealed and factory-calibrated. They provide plug-and-play optical precision. You unbolt the old housing, bolt in the new one, and the beam pattern is perfect. However, they come at a premium price.
Aftermarket bulb retrofits offer significant cost-efficiency. You only replace the light source, keeping the original housing. However, this route carries a higher risk of beam distortion. Retrofits require precise manual calibration during installation. You must verify diode alignment and focal depth. The trade-off is clear: you save money with retrofits, but you assume the responsibility of ensuring the optical geometry remains safe and compliant.
If your original housings have cloudy, oxidized lenses or degraded chrome reflectors, putting a new LED bulb inside will not fix the problem. The degraded housing will scatter the light regardless of how good the bulb is. In these cases, a full assembly replacement is the only viable option for restoring proper beam geometry.
Beam pattern interacts heavily with color temperature during adverse weather conditions. A wide, highly intense beam pattern paired with a cool white temperature (6000K or higher) often causes severe back-glare in fog, rain, or snow. The blue-heavy light reflects off the moisture particles directly back into your eyes, creating a white wall effect that destroys visibility.
A tightly focused beam pattern with a warmer tint (such as 4300K or 5000K) performs significantly better in poor weather. The warmer light cuts through moisture more effectively. Furthermore, a controlled beam prevents unnecessary light from illuminating the fog bank directly in front of your windshield. You want the light to stay low and penetrate the weather, not light up the air around you.
When selecting an upgrade, consider your local climate. If you frequently drive in heavy snow or fog, avoid ultra-wide beam patterns and high color temperatures. Stick to a focused, DOT-compliant pattern with a neutral white output to maximize contrast and minimize back-glare.
You must verify your beam pattern post-installation. The 25-foot wall test is the standard methodology for this verification. You need a completely flat surface and exactly 25 feet of distance between the vehicle's headlights and a blank wall. This distance allows the beam pattern to fully form and reveals any alignment issues.
Park the vehicle on level ground, facing the wall, with the front bumper touching the wall.
Mark the exact center of each headlight beam on the wall using a piece of tape.
Back the vehicle up in a straight line until the headlights are exactly 25 feet away from the wall.
Turn on the low beams and observe where the cutoff line hits the wall relative to your original tape marks.
Measure the drop from the original center mark to the top of the new cutoff line.
Mitigate implementation risks by manually aiming the housings after upgrading the bulbs. At 25 feet, the standard drop requirement dictates that the top of the cutoff line should sit exactly 2 inches below the center height of your headlights. This drop ensures the hotspot remains focused on the road surface and stays out of oncoming drivers' eyes. If the cutoff is too high, you will blind people. If it is too low, you will outdrive your lights at highway speeds.
Pay special attention to horizontal alignment. The beam must point straight ahead. Ensure the intense portion of the left-side light does not cross the center dividing line into oncoming traffic. Most vehicle housings feature easily accessible adjustment screws for both vertical and horizontal calibration. Use a long Phillips head screwdriver or a socket wrench to turn these adjusters while watching the beam move on the wall.
Always perform this aiming process with the vehicle loaded as it normally would be. If you frequently carry heavy loads in the trunk, the rear of the vehicle will sag, pointing the headlights upward. Aim the lights with a typical load to ensure they remain compliant under normal driving conditions.
Beam pattern, not raw lumen output, is the definitive metric for evaluating automotive lighting performance and safety. A highly controlled, precisely aimed beam delivers superior road visibility without endangering other drivers. When evaluating upgrades, prioritize optical geometry over exaggerated brightness claims.
Follow these next steps to ensure a successful lighting upgrade:
Identify your specific vehicle housing type (reflector vs. projector) before purchasing any replacement bulbs.
Verify your regional LHD or RHD requirements to ensure the asymmetrical cutoff line steps up in the correct direction.
Select LED upgrades that feature 1:1 halogen filament replication and 360-degree adjustable collars.
Perform a baseline 25-foot wall test with your factory bulbs to record the original cutoff height.
Manually adjust the vertical and horizontal aim of your housings immediately after installing new bulbs to guarantee compliance.
A: Dark spots occur due to incorrect diode alignment or a mismatch between the LED chip thickness and the housing's focal point. If the diodes do not sit exactly where the original halogen filament sat, the reflector bowl cannot capture and project the light properly, disrupting the beam pattern and creating voids.
A: The difference lies in the asymmetrical cutoff step-up. A left-side car light in a Left-Hand Drive (LHD) country steps down on the left to avoid blinding oncoming traffic, while stepping up on the right to illuminate the shoulder. Right-Hand Drive (RHD) patterns are the exact inverse.
A: Yes, but only if the LED is specifically engineered to mimic a halogen filament's exact focal length and size. The diodes must align perfectly at the 3 and 9 o'clock positions to maintain the correct beam pattern and prevent dangerous light scatter.
A: You will likely receive frequent flashes from oncoming drivers. Technically, you can verify this by performing a wall test. If you see significant light scatter or a blurry hotspot bleeding above the horizontal cutoff line at 25 feet, your lights are causing dangerous glare.
A: No. While projectors provide a sharp cutoff line via an internal shield, inserting an incompatible or poorly designed light source can still result in poor hotspot placement, central dark zones, and significantly reduced usable distance down the road.
A: A proper low beam pattern features a sharp, distinct horizontal cutoff line with a clear step-up on the passenger side. It has a highly concentrated hotspot positioned just below the cutoff step, and provides wide, even peripheral lighting without any central dead spots.
